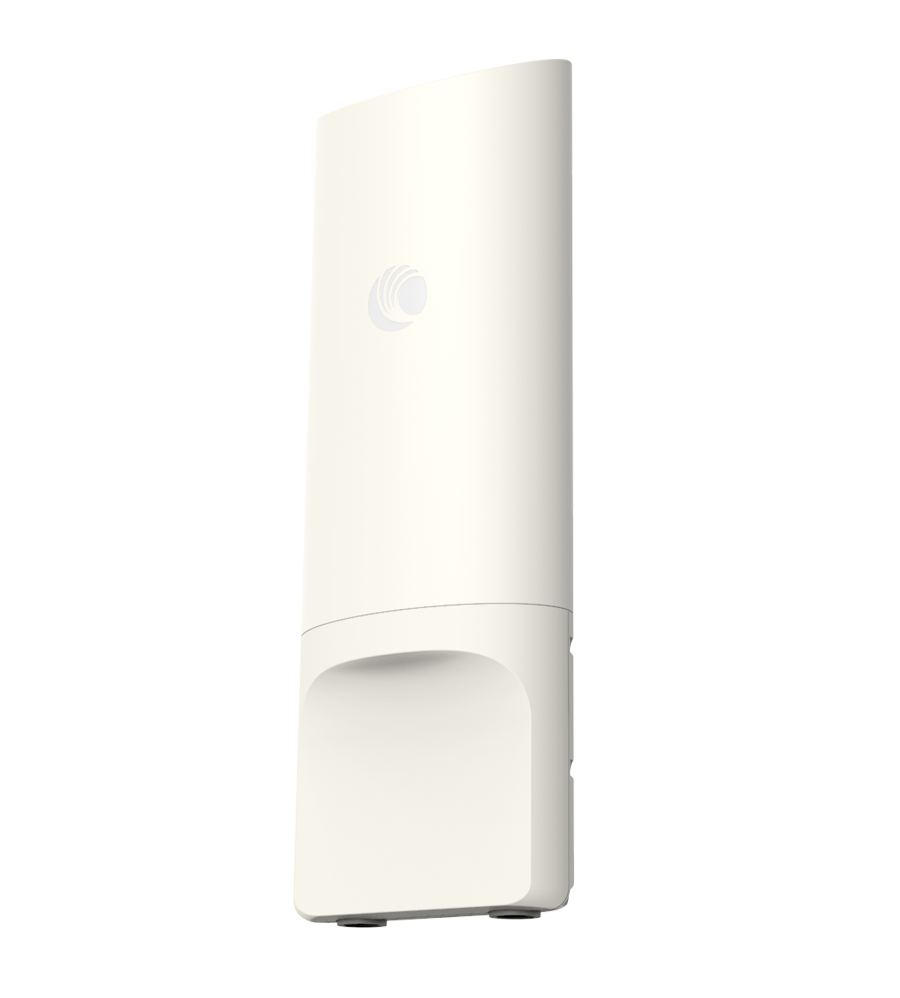

Cambium XV2-2T Wi-Fi 6 Outdoor Wireless Access Point

Product Model: XV2-2T0

Brand: Cambium Networks

Category: Wi-Fi Outdoor AP

Outdoor Wireless Access Points with High-Efficiency Antennas
1 km or greater range, enabling a significant reduction in the equipment and cost required to cover a given area
PoE-out up to 30 Watts for external IP/Ethernet devices such as an IP camera, 60 GHz node, or another Wi-Fi access point
All-in-one enterprise access point design with integrated antennas and controller functionality
Coverage options include omni-directional and 120-degree sectored

XV2-2T Wi-Fi 6 Outdoor Wireless Access Point Outdoor Wireless Access Points with High-Efficiency Antennas Cover significantly larger areas in campus networks and public Wi-Fi hotspot applications. Coupling Wi-Fi 6 technology with high efficiency antennas, the XV2-2T delivers up to 1 km range as well as higher throughput at shorter ranges compared to competitive solutions. Covering more area per AP, network operators can save costs on equipment, cabling, installation, maintenance and access rights for outdoor Wi-Fi deployments. When paired with Cambium Networks’ multi-gigabit 60 GHz cnWave solutions for Wi-Fi backhaul, network operators can blanket large areas with blazingly fast speeds – all wirelessly.

Radios	5 GHz 802.11 a/n/ac/ax, 2x2 2.4 GHz 802.11 b/g/n/ax, 2x2 BLE 4.1
Wi-Fi	802.11 a/b/g/n/ac/ax
SSID Security	WPA3-SAE, WPA3-Enterprise, WPA2-PSK (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), OSEN, OWE, Open
Ports	1 x IEEE 100/1000/2500 Mbps 1 x IEEE 10/100/1000 Mbps Ethernet with SW configurable passive PoE output of 30V or 48V up to 30 watts
Antenna Gain	5 GHz 9.3 dBi, omni 2.4 GHz 5.3 dBi, omni
Max EIRP*	5 GHz 36 dBm 2.4 GHz 33 dBm
Filter LTE Band	38, 40
Power	Max power 20W, 802.3at powered device Up to 50W when powering an auxiliary device
Dimensions	582 mm x 200 mm x 80 mm (22.91 in x 7.87 in x 3.15 in)
Weight	2,700 g (5.95 lb)
Security	Kensington lock slot
Mount Options	Pole or wall mounting Pole diameter: Min 30 mm/max 75 mm
Ambient Operation Temperature	40ºC to 65ºC (-40ºF to 149ºF)
Storage Temperature	-40ºC to 70ºC (-40ºF to 158ºF)
Humidity	95% RH non-condensing
MTBF	669,174 hours at 25ºC 206,739 hours at 65ºC
LEDs	Multi-color status LEDs, dimmable, on/off
Certifications (compliance)	Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, FCC, IC, CE, EN 60601-1-2, EN 60950-1,IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4- 2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, EN 62311 Human Safety/RF Exposure, WEEE & RoHS
WLAN	1,024 concurrent clients per AP 16 SSID per AP
Security, Authentication Encryption	Open, WPA2-AES with PSK, ePSK and Enterprise WPA3 with PSK (WPA3-SAE), ePSK, Enterprise, Enterprise-CNSA, OWE (Enhanced Open) OSEN and PMF (802.11 W) MAC authentication with local database or external database using RADIUS protocol 802.1X with EAP-TTLS, EAPTLS/MSCHAPv2, PEAPv0/PEAPv1/EAPPEAP/EAP-SIM/AKA/AKA’/FAST Hotspot WEB authentication
Wi-Fi Quality of Service	WMM (packet marking either with 802.1p or IP DSCP), WMM-PS, U-APSD Multicast to unicast conversion
Mesh	Multi-hop, either band
Security	Rogue AP detection and termination (X), WIDs/WIPs, DoS protection L2–L7 firewall with application visibility (X) and control (X), DNS-based access control (X) ACL and AirCleaner tools
