Product Model: PS30Plus
Brand: Zebra
Category: Barcode Scanner

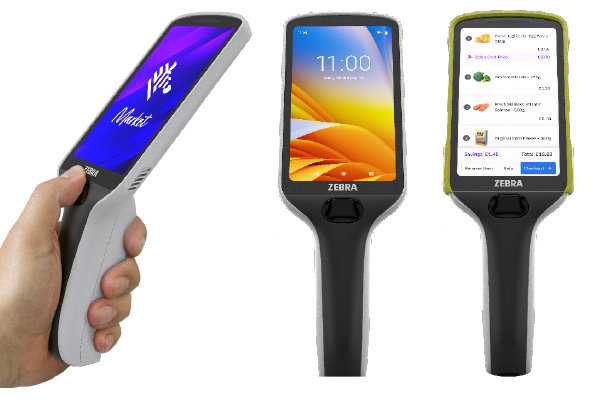

The PS30 Plus is an intuitive handheld device that empowers shoppers to scan items, access shopping lists and personalized coupons, get in-store navigation, and perform on-the-spot, contactless "tap-to-pay" mobile payments via integrated NFC. It features a sleek, ergonomic design with a large 4.7-inch touchscreen and is built with durable, disinfectant-ready housing and Corning Gorilla Glass to withstand public use in a retail setting. The device is powered by a fast octa-core processor and Wi-Fi 6E connectivity, ensuring a smooth, app-driven shopping experience.
Key Features
| Feature | Detail |
|---|---|
| Device Type | Rugged Android Personal Shopper Mobile Computer |
| Primary Use Case | Retail Customer Self-Scanning and Self-Checkout |
| Operating System (OS) | Android 11 (AOSP, upgradeable to Android 14) |
| Display | 4.7-inch HD color display with Corning Gorilla Glass |
| Touch Technology | Capacitive multi-touch, works with gloves or bare finger |
| Scanning Capability | Integrated SE4770 1D/2D enterprise-class imager |
| Connectivity | Wi-Fi 6E (802.11ax), Bluetooth 5.2, NFC (Tap-to-Pay) |
| Processor | Qualcomm Snapdragon octa-core 2.4 GHz |
| Durability | Disinfectant-ready plastics, IP65 sealed |
| Memory | 4 GB RAM / 64 GB Flash memory |
| Payment Integration | Integrated NFC for mobile wallet payments (e.g., Google Pay/Apple Pay) |
| Ergonomics | Lightweight (approx. 240g), slim, easy for customers to hold |
| Software | Powered by Zebra's Mobility DNA Professional suite |
Physical Characteristics
| Dimensions | 0.76 in. H x 8.52 in. L x 2.83 in. W 19.4 mm H x 216.5 mm L x 72 mm W |
| Weight | Standard: 9.95 oz./282 g |
| Display | 4.7 inch color HD (1280x720); optically bonded to touch panel glass; 540 NITS |
| Touch Panel | Corning Gorilla Glass; capacitive multi-touch |
| Imager Window | Corning Gorilla Glass |
| Interface/ Communications |
USB 2.0 Client Cable for device maintenance |
| Voice and Audio | One (1) microphone and two (2) speakers for voice query and assistance |
| Notifications | Audible tone; multi-color LED; haptic feedback |
| Button | 1 dedicated scan button |
Performance Characteristics
| CPU | Qualcomm™ QCS4490 Kryo octa-core; 2.4 GHz |
| Operating System | Android; for supported Android versions |
| Memory | 6 GB RAM/64 GB Flash |
| Power | PowerPrecision+ 3500 mAh capacity Li Ion rechargable battery |
| Security | Common Criteria certified (ISO 15408); Verified Boot; Secure Boot |
User Environment
| Operating Temp. | 14° F to 122° F/-10° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% - 95% non condensing |
| Drop Spec. | Multiple 4 ft./1.2 m drops to concrete across the entire operating temperature range |
| Tumble Spec. | 1,000 1.64 ft./0.5 m tumbles at room temperature |
| Sealing | PSS Casual Spill |
| Disinfectant Ready | Advanced chemical resistant plastics built to withstand frequent cleanings with a wide selection of disinfectants. For information on Zebra-approved disinfectants and guidelines on cleaning, |
| Vibration | 2g peak, 5 Hz to 2 kHz, 1 hour duration per axis; Random: 0.02g²/hz, 20hz to 2khz; 1 hour duration per axis |
| Electrostatic Discharge (ESD) | +/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge |
Data Capture
| Scanning | SE4710 1D/2D imager with hands-free scanning and Digimarc support |
| Light Source | Red LED Illumination with LED dot aim pattern |
| NFC | Plus model only: NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support – Front Tap NFC for optimized contactless payment, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK |
