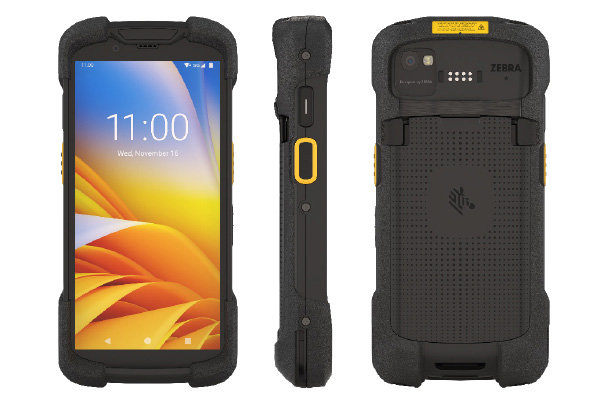

Product Model: TC73
Brand: Zebra
Category: Barcode Scanner
Designed for workers who spend their days inside your facility, the TC73 offers everything you need to support the new generation of mobile solutions—Wi-Fi 6E for fast and dependable wireless connections;a bright, easy-to-see 6-inch Full HD display;more power, memory and storage to support demanding apps;and an extended range scanner that can capture barcodes in hand and as far away as 40 ft./12.2 m away. And while it’s more rugged, it’s nearly 20% thinner, lighter and more ergonomic.
Key Features
| Characteristic | Specification |
|---|---|
| Display | 6.0-inch Full HD+ (1080 x 2160), LED backlight, Corning Gorilla Glass, multi-touch (wet and glove operation) |
| Operating System | Android 11 (upgradeable up to Android 16) |
| Processor (CPU) | Qualcomm 6490 Octa-Core, 2.7 GHz |
| Memory | 4 GB RAM/64 GB Flash or 8 GB RAM/128 GB Flash options |
| Scanner | SE4770 Standard Range or SE55 Advanced Range 1D/2D Imager with IntelliFocus technology |
| Connectivity | Wi-Fi 6E (WLAN), Bluetooth 5.2 (WPAN), NFC, USB-C |
| Durability | Ultra-rugged, IP65 and IP68 sealed, multiple 10 ft./3.05 m drops to concrete (per MIL-STD 810H) |
| Battery | Standard 4,680 mAh or extended 7,000 mAh capacity, hot-swappable options |
| Camera | 16 MP auto-focus rear camera, 8 MP front camera |
| SIM Support | TC73 is WLAN only (TC78 supports Nano SIM and eSIM for 5G WWAN) |
Physical Characteristics
|
Dimensions |
6.96 in. L x 3.38 in. W x 1.12 in. H/176.8 mm L x 85.8 mm W x 28.4 mm H; Grip area: 3.179 in. W x 0.80 in. H/80.75 mm W x 20.3 mm H |
| Weight | 12.3 oz./349 g with standard battery |
| Display | 6.0 inch Full High Definition+ (1080 X 2160); LED backlight; optically bonded to touch panel |
| Imager Window | Corning™ Gorilla™ Glass |
| Touch Panel | Multi mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); Corning™ Gorilla™ Glass; Water droplet rejection; fingerprint resistant anti-smudge coating |
| Power | Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; Standard Capacity: 4680 mAh (18.01 Watt hours); Extended Capacity: 7000 mAh (26.95 Watt hours); BLE battery: 4680 mAh; Qi compatible Wireless charge battery: 4680 mAh; fast charging, Warm Swap battery mode (standard SKUs); Hot Swap battery mode (premium SKUs) |
| Expansion Slot | User accessible MicroSD card supports up to 2 TB |
| Network Connections | TC73: WLAN, WPAN (Bluetooth) |
| Notifications | Audible tone; multi-color LEDs; haptic feedback |
| Keypad | On-screen keypad and Zebra enterprise keyboard |
| Voice and Audio | Built-in microphones for noise suppression and stereo record; vibrate alert; Dual speakers for loudness; Bluetooth wireless headset support; PTT headset (Zebra USB-C) support; High quality stereophonic speaker phone; Cellular Circuit Switch voice; HD voice; VoLTE EVS; VoIP incl. SWB Audio |
| Buttons | Programmable buttons for maximum flexibility: dual dedicated scan buttons; dedicated push-to-talk button; volume up/down buttons and Trigger button of Trigger Handle via Back I/O |
| Interface Ports | USB 2.0 (Back I/O — Host Only), USB 3.0 (Bottom Type C) — Super Speed (Host and Client) |
Performance Characteristics
| CPU | Qualcomm 6490 octa-core, 2.7 GHz |
| Operating System | Android; for supported Android versions, visit: www.zebra.com/android-versions |
| Memory | 4 GB RAM/64 GB UFS Flash; 8 GB RAM/128 GB UFS Flash |
| Security | FIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request. Supports Secure Boot and Verified Boot |
User Environment
| Operating Temperature | -4° F to 122° F/-20° C to 50° C |
| Storage Temperature | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification |
Multiple 10 ft./3.05 m drops to concrete at room temp per MIL-STD 810H |
| Tumble Specification | 2000 3.3 ft./1.0 m tumbles, meets or exceeds IEC tumble specification |
| Sealing | IP65 and IP68 with battery per applicable IEC sealing specifications |
| Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis |
| Electrostatic Discharge (ESD) | +/- 15 kVdc air discharge; +/- 8 kVdc direct discharge; +/- 8 kVdc indirect discharge |
Automated Interactive Sensor Technology (IST)
| Light Sensor | Adjusts display backlight brightness |
| Magnetometer | Detects direction and orientation |
| Motion Sensor | 3-axis accelerometer with MEMS Gyro |
| Pressure Sensor | Detects altitude information for locating |
| Proximity Sensor | Detects when the user places the handset against head during a phone call to disable display output and touch input |
| Gyro | Senses linear orientation |
General Certifications
| TAA compliant; ARCore Google certification sustained |
Data Capture
| Scanning | SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4770 1D/2D Scan Engine |
| Camera | Front — 8 MP; Rear — 16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard); Optical Image Stabilization (OIS) (premium SKUs only); Time of Flight (ToF) Sensor (premium SKUs only) |
| NFC | NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK |
Markets and Applications
Transportation and Logistics
Field Operations
Warehouse and Distribution
Manufacturing
Government
Retail
