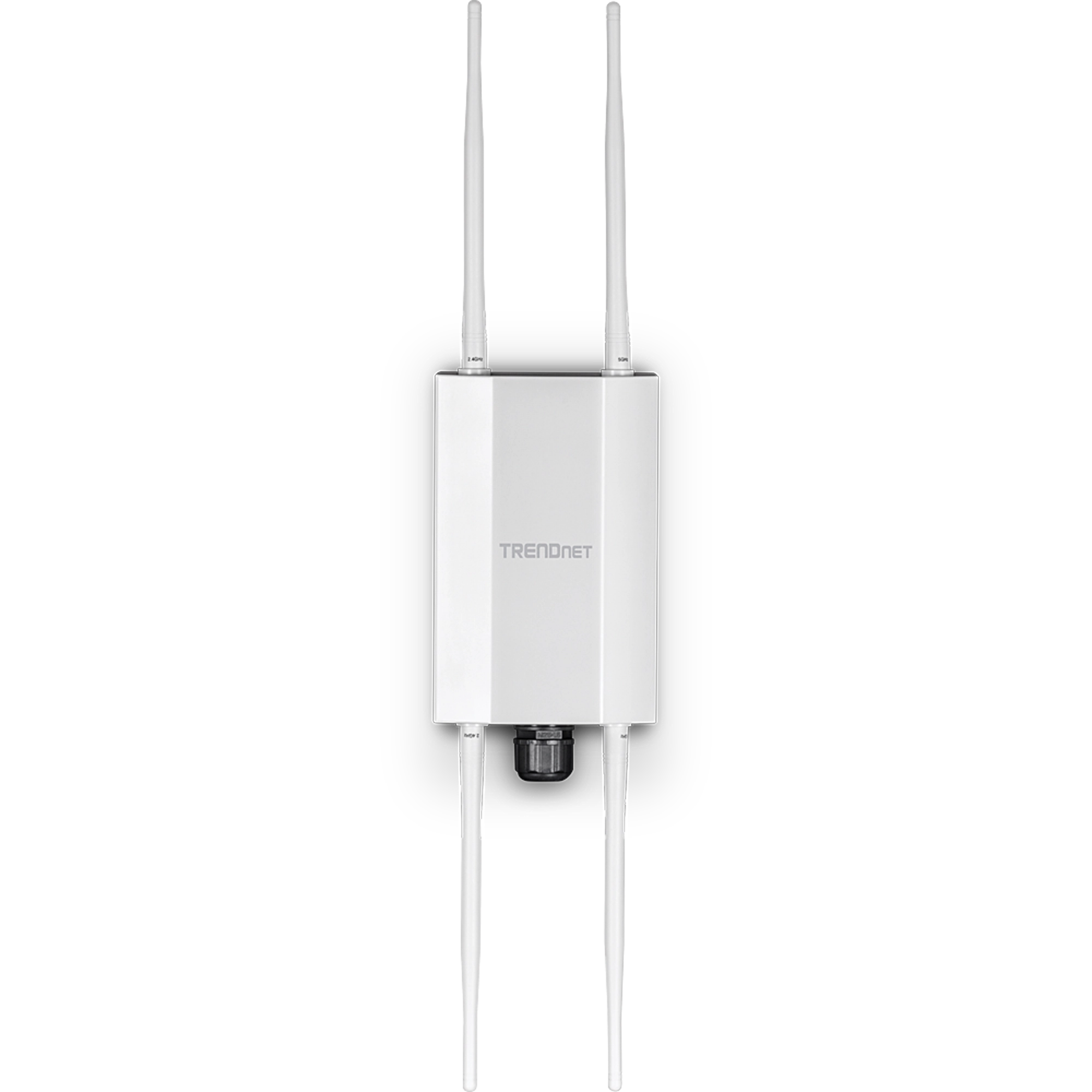

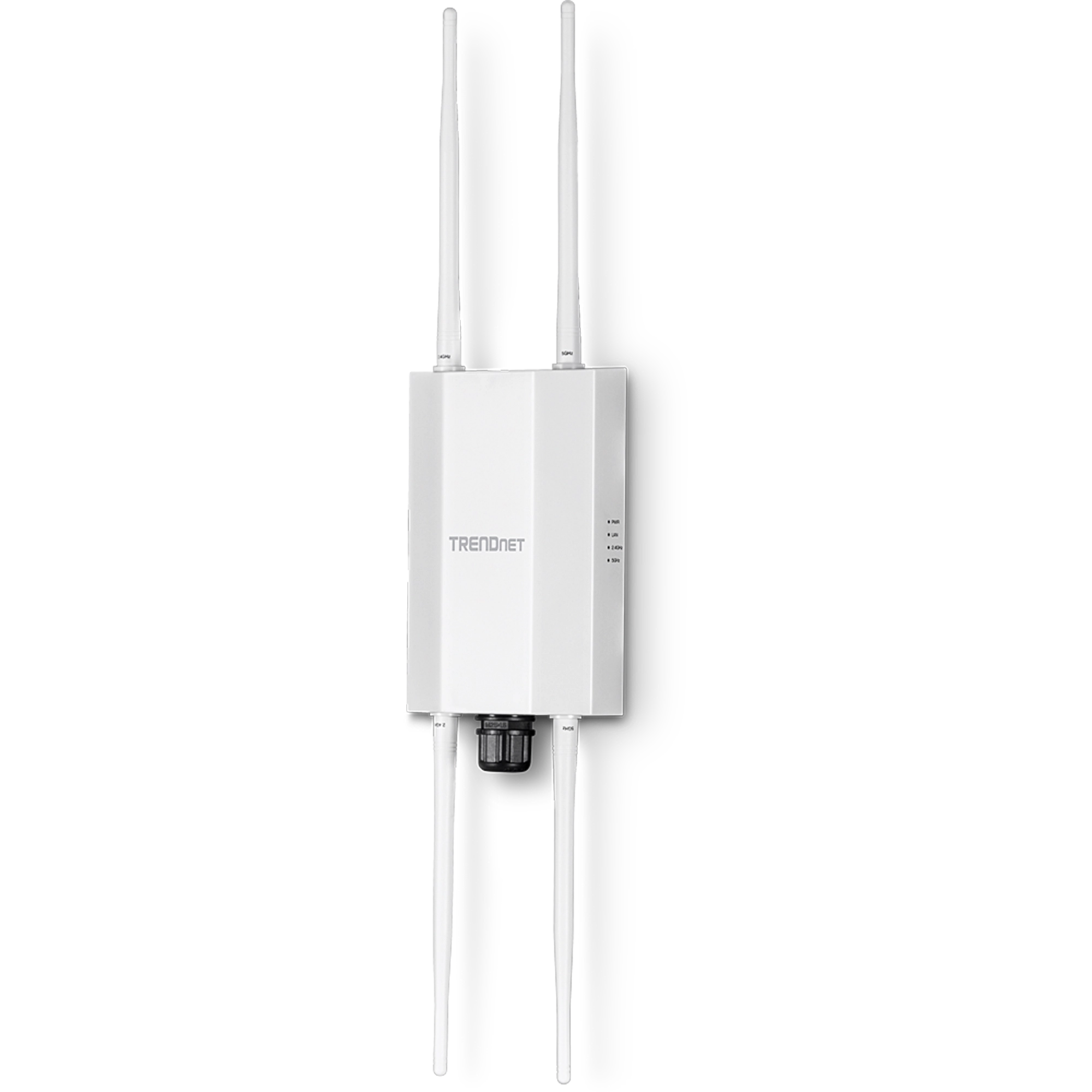

TRENDnet’s 5 dBi WiFi 6 AX1800 Outdoor PoE+ Omni-Directional Access Point, model TEW-941APBO, is designed for point-to-point and point-to-multi-point WiFi bridging applications. This WiFi 6 outdoor access point can be powered with an IEEE 802.3at PoE+ switch or injector. The WiFi 6 outdoor omnidirectional AP supports point-to-point and point-to-multi-point scenarios with Access Point, Client Bridge, and Repeater modes. The IP67 rated housing on this WiFi 6 outdoor access point is designed for outdoor environments, and conveniently includes wall and pole mounting hardware.
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3at
IEEE 802.3bz
IEEE 802.1Q
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (5GHz: up to 300Mbps, 2.4GHz: up to 300Mbps)*
IEEE 802.11r*
IEEE 802.11v
IEEE 802.11ac (5GHz: up to 867Mbps)*
IEEE 802.11ax (5GHz: up to 1201Mbps, 2.4GHz: up to 573Mbps)*
Hardware Interface

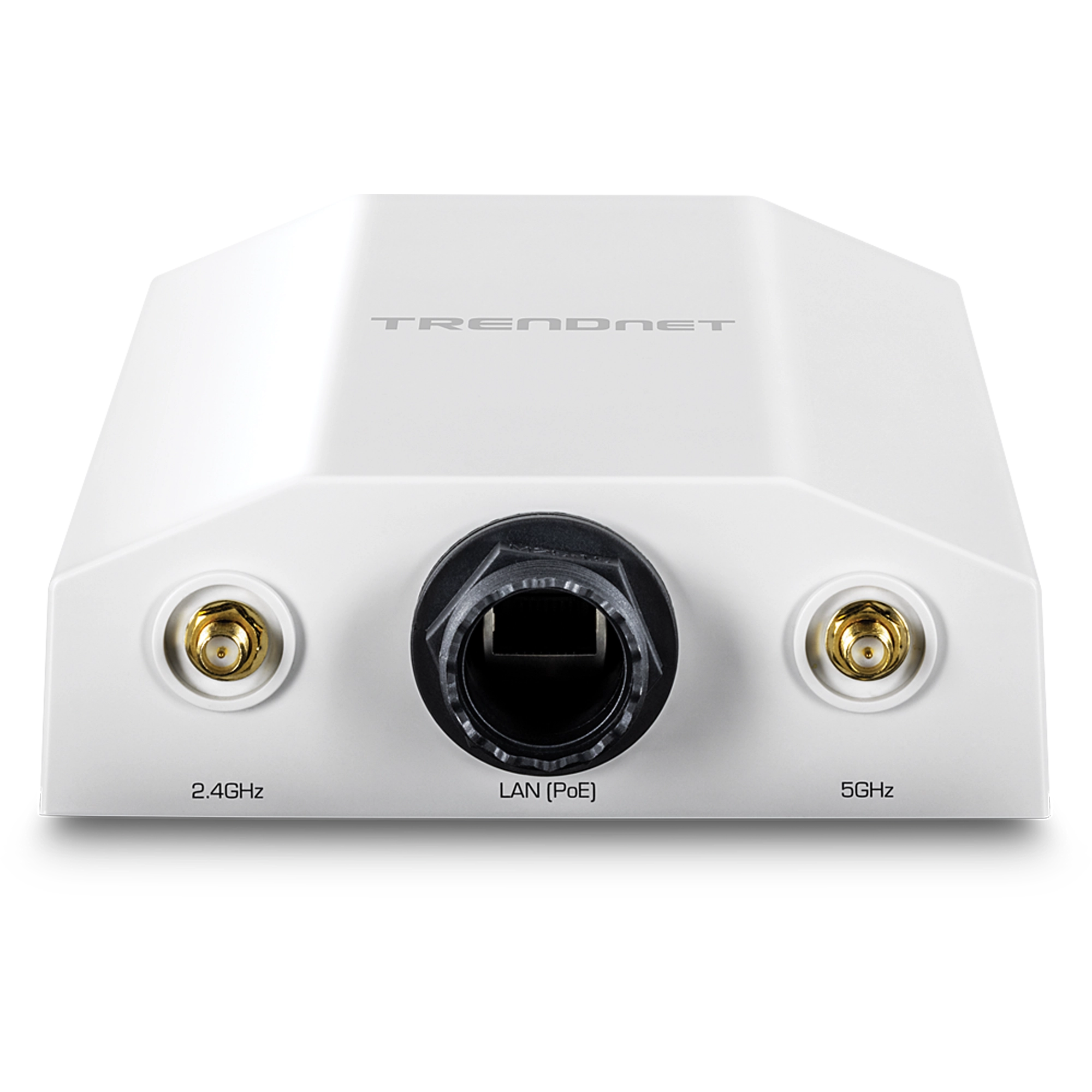

1 x PoE+ 2.5G LAN port (power input)

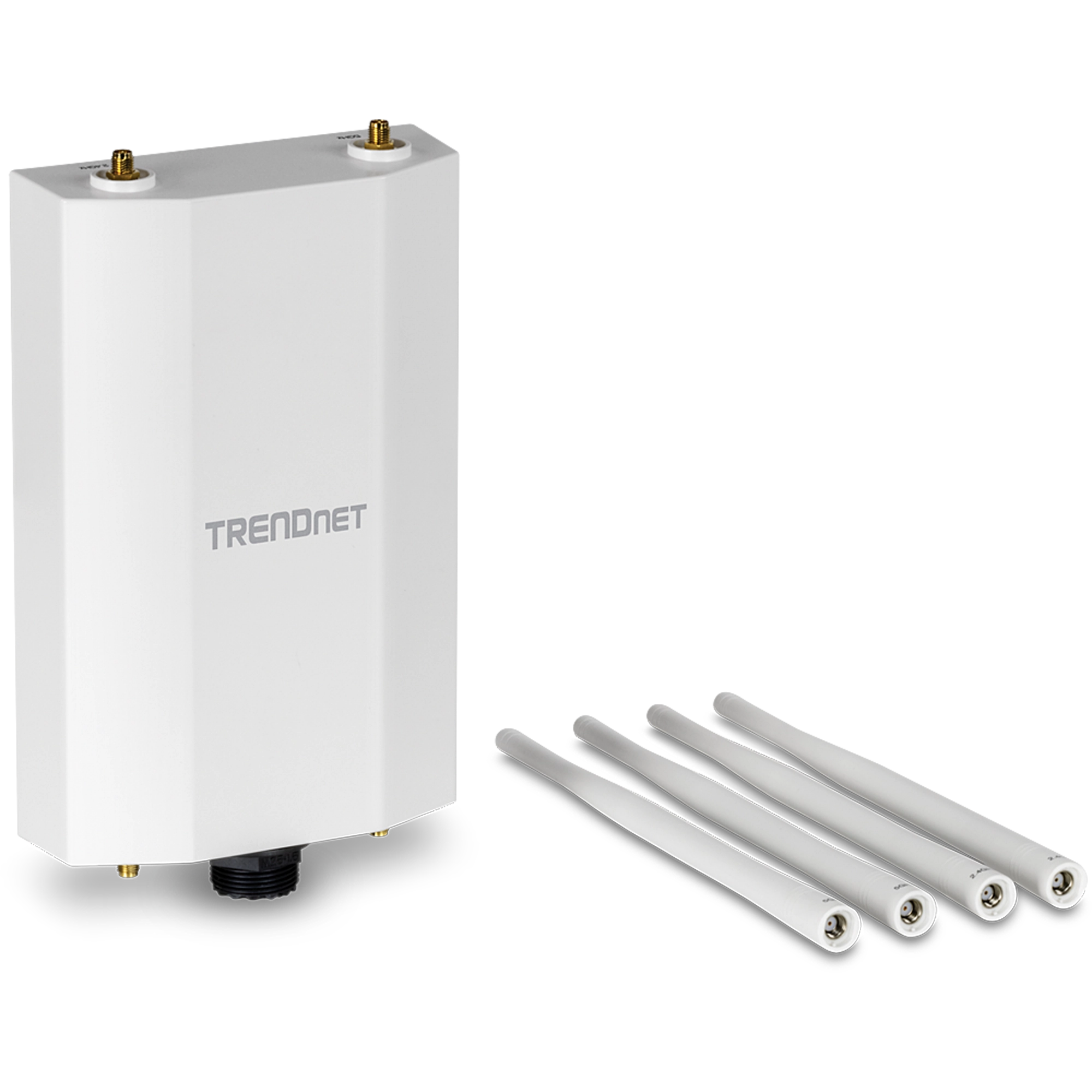

4 x RP-SMA (female) antenna connectors
LED indicators
Features
802.11ax WiFi 6 support
IP67 rated housing
MU-MIMO
Airtime fairness
Band steering
802.1Q VLAN assignment per SSID
IPv6 support
LEDs on/off
802.11k intelligent radio resource management
RSSI Threshold (client signal strength and connectivity control)
LLDP
Bonjour/UPnP
Operation Modes
Access Point
Client Bridge
Repeater
Management/Monitoring
Web based management (HTTP/HTTPS)
Command Line Interface (SSH)
SNMP v2c/v3
Spanning Tree Protocol (STP)
Event logging
Ping test
Traceroute
Performance throughput test
Schedule WiFi radio enable/disable
Ping watchdog/gateway connection monitor
Reboot & scheduled automatic reboot
Channel utilization scan/AP detection
Hive Cloud Management
Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app
Multi-device management
Provisioning through scheduled batch firmware or configuration updates for multiple switches
