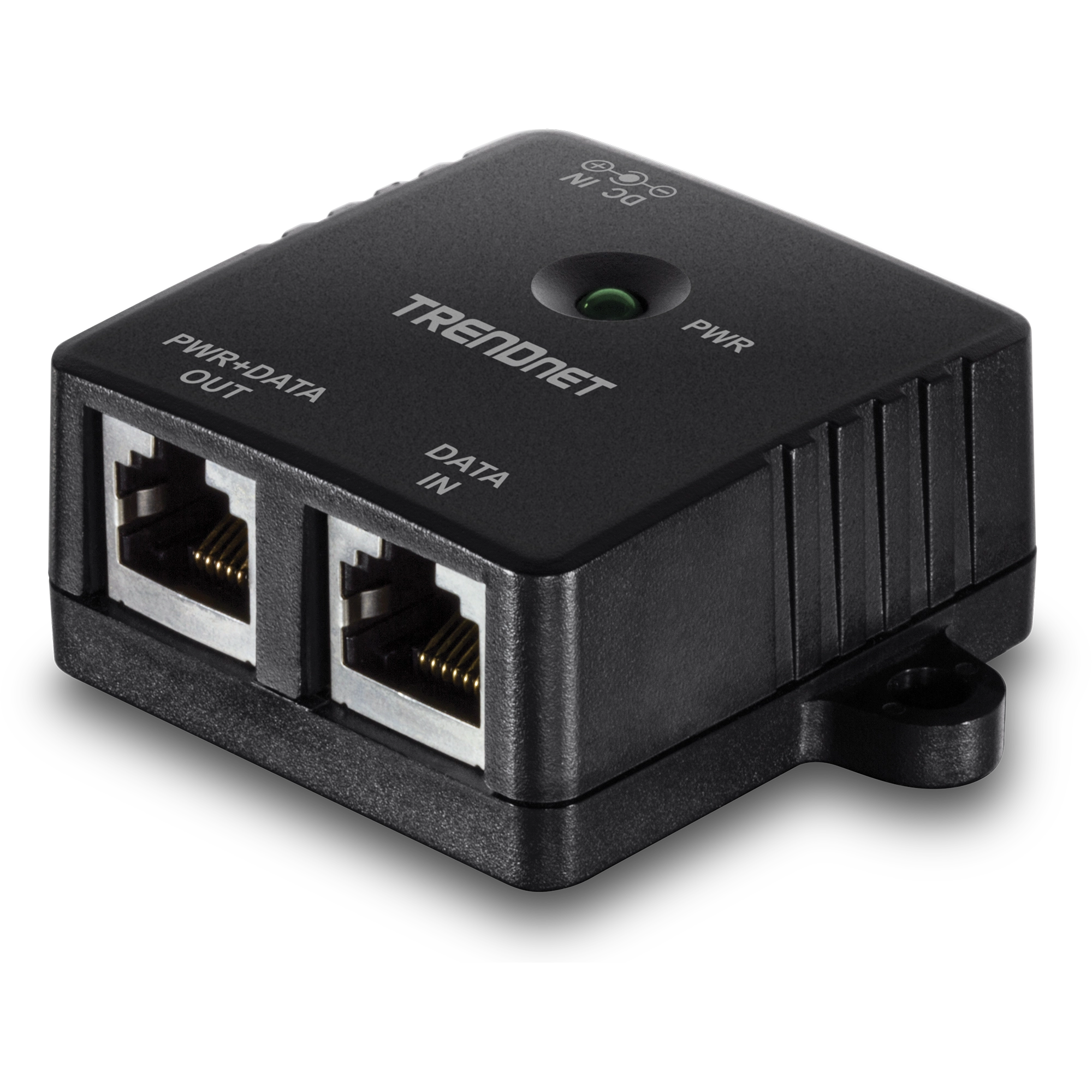

TRENDnet's Gigabit PoE Injector, model TPE-113GI, combines electrical power with a Gigabit network connection. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE devices. Connect the injector to a non-PoE Gigabit switch and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away.
| Specification | Details |
|---|---|
| **Standards** | IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af |

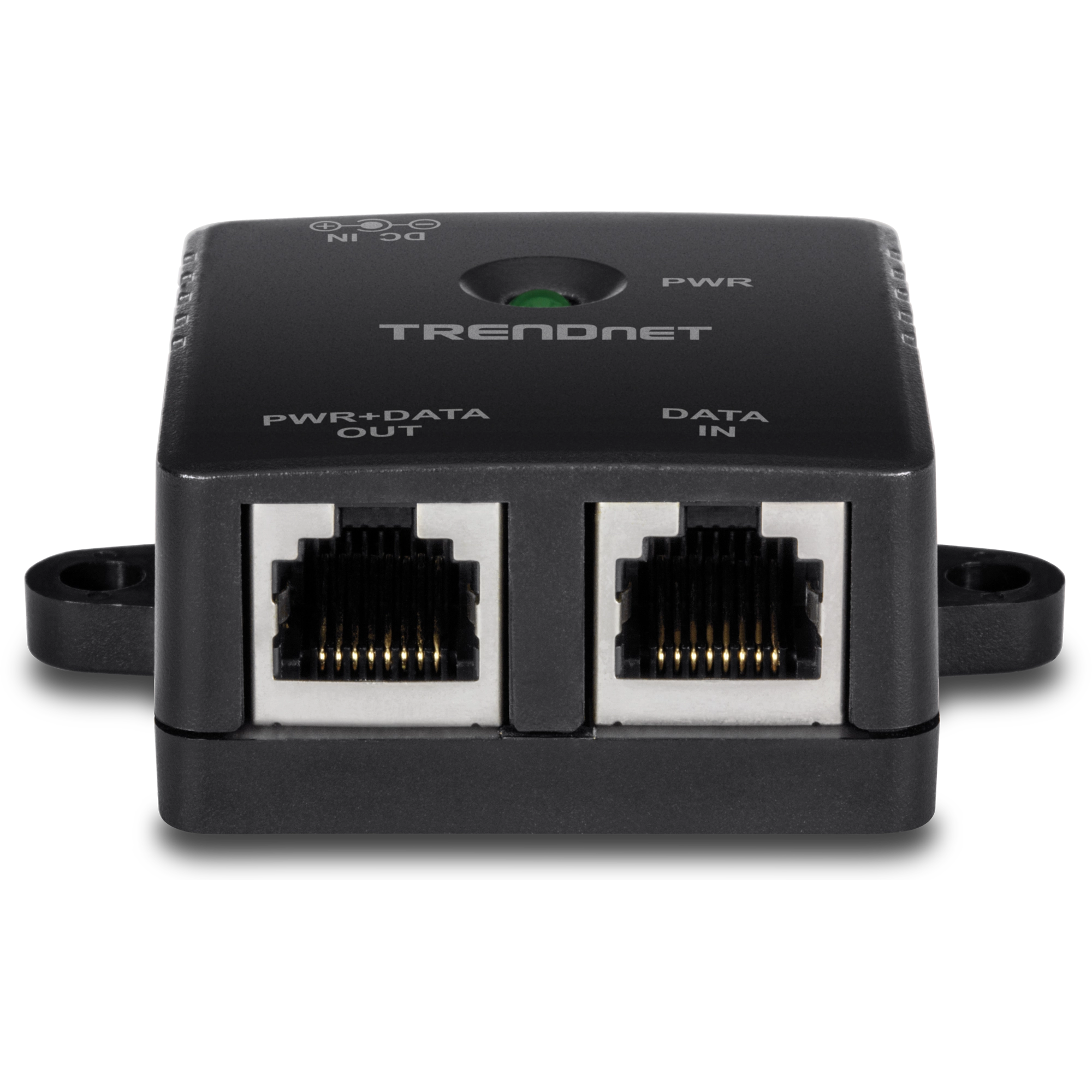

| **Device Interface** | 1 x Gigabit Data In port
1 x Gigabit Data & Power out port

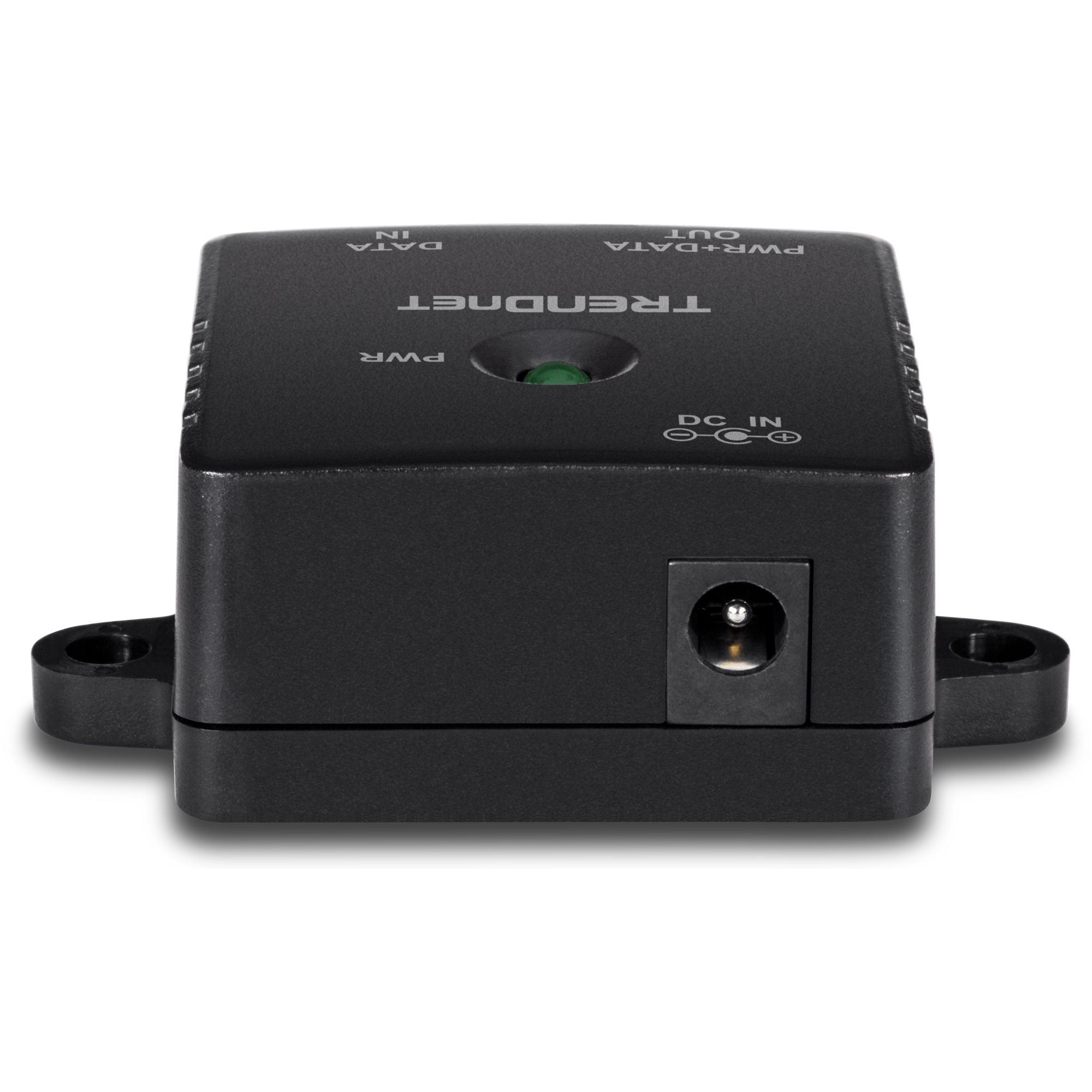

1 x Power Input
LED indicator |
| **Special Features** | Wall-mountable |
| **Data Transfer Rate** | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
PoE Delivery
Pin 1, 2 for power+ and pin 3, 6 for power- (mode A) |
| **Power** | Input: 100 – 240V AC, 50/60Hz, 0.6A max. |
| **Power Consumption** | Max. 15.4W |
| **Operating Temperature** | 0° – 40° C (32° – 104° F) |
| **Operating Humidity** | Max. 90% non-condensing |
| **Dimensions** | 67 x 51 x 25mm (2.6 x 2 x 1 in.) |
| **Weight** | 38g (1.34 oz.) |
| **Certifications** | CE
FCC |
| **Warranty** | 2 year |
