Product Model: ZD621
Brand: Zebra
Category: Barcode Printer

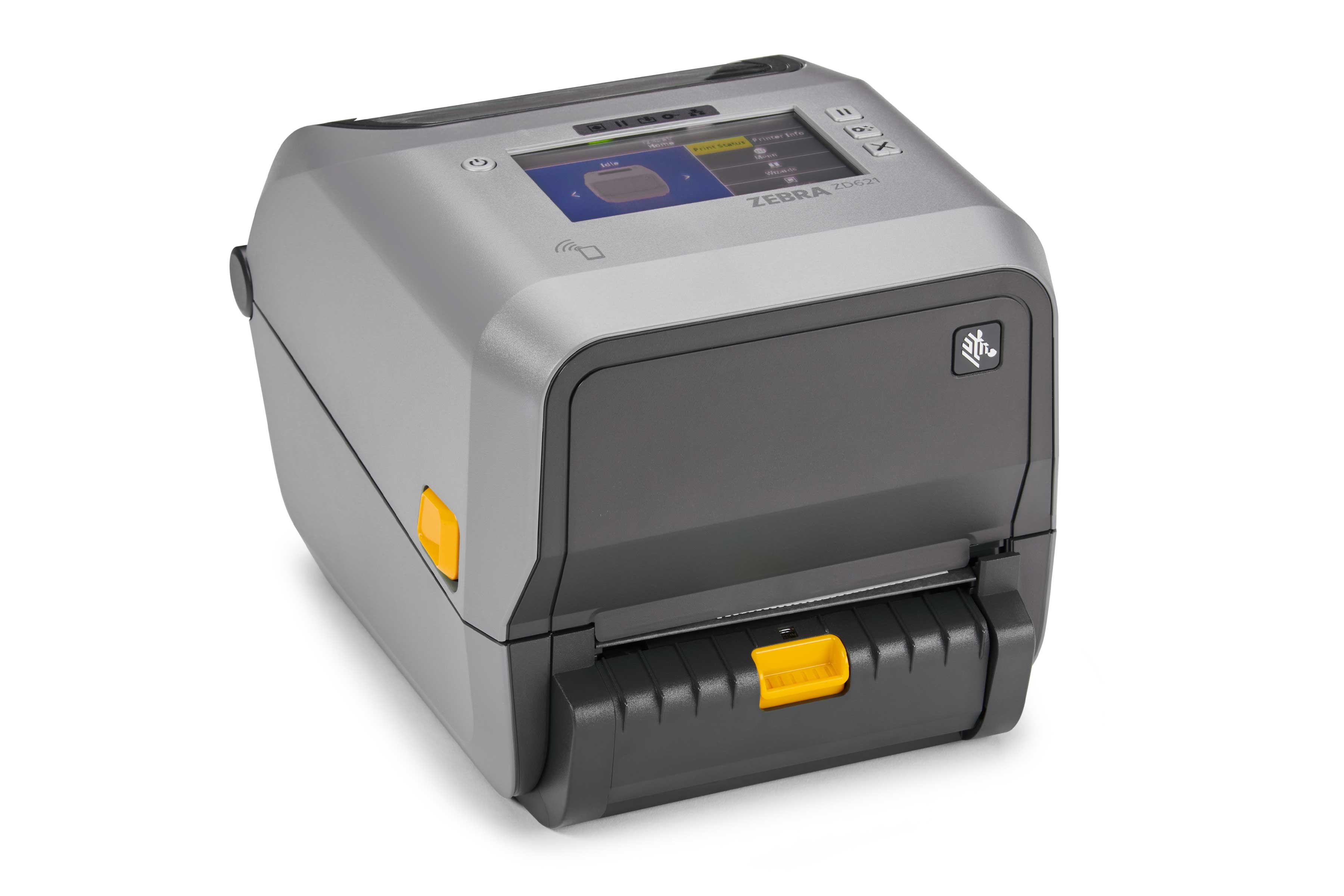

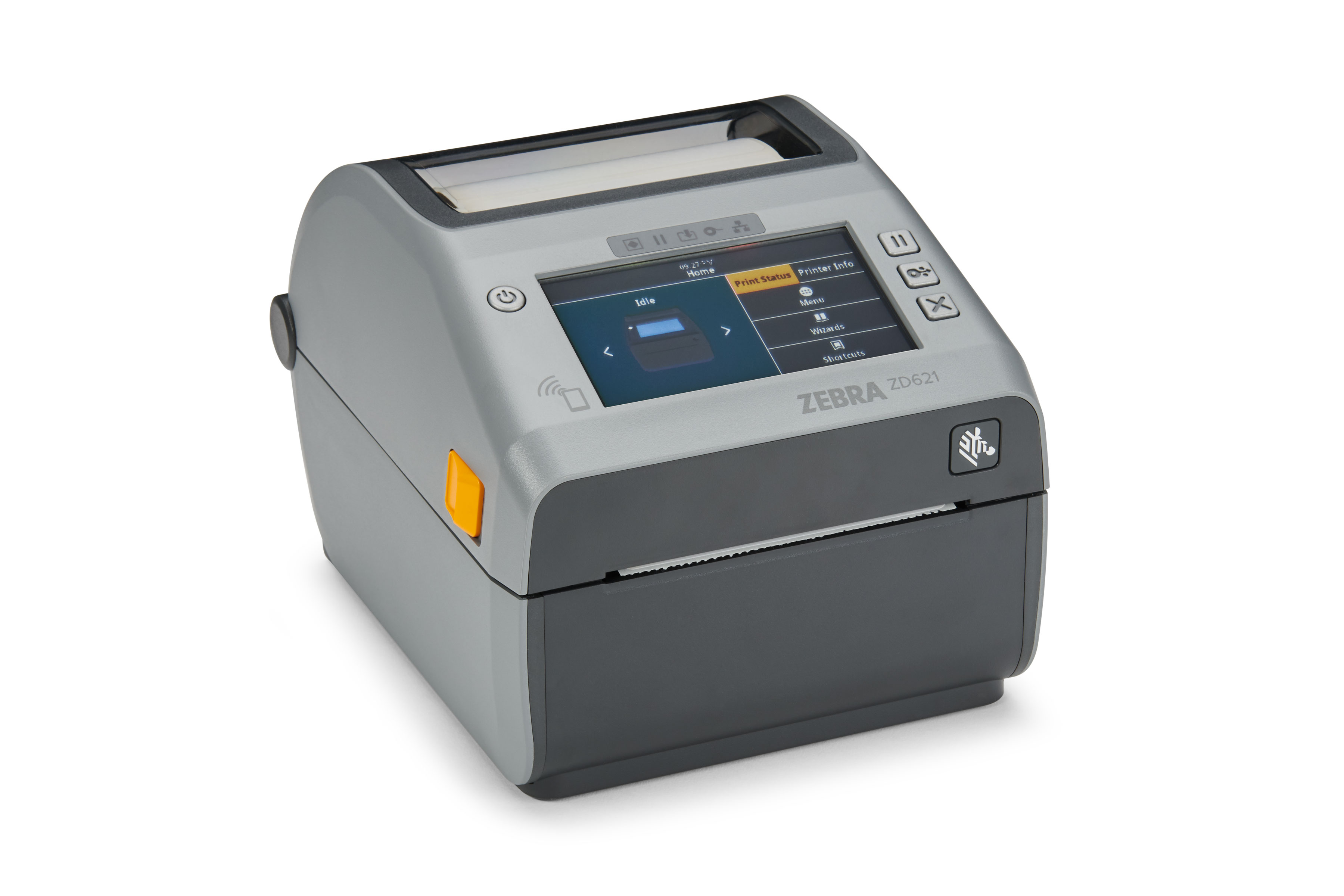

The ZD621 premium printers bring industrial printing quality to a compact desktop printer—offering fast print speeds, excellent print quality, simple manageability, and security. The 4-inch ZD621 is available in Direct Thermal and thermal transfer print modes. The ZD621 can also help enhance productivity while improving sustainability as part of Zebra's Zero Liner Linerless Printing Solution.
Key Features
| Feature | Details |
|---|---|
| Printing Technology | Thermal Transfer and Direct Thermal |
| Print Resolution | 203 dpi (8 dots/mm) standard; 300 dpi (12 dots/mm) optional |
| Max Print Speed | 8 ips (203 mm/s) at 203 dpi; 6 ips (152 mm/s) at 300 dpi |
| Max Print Width | 4.09 in./104 mm (203 dpi) to 4.27 in./108 mm (300 dpi) |
| User Interface | 5 status icons with 3 buttons; Optional 4.3" full-color LCD touch screen |
| Memory | 512 MB Flash; 256 MB SDRAM |
| Connectivity (Standard) | Ethernet, Serial, USB 2.0, USB Host, Bluetooth Low Energy (BLE) |
| Connectivity (Optional) | Wi-Fi 6 (802.11ax) or Wi-Fi 5 (802.11ac) with Bluetooth 5.3/4.2 |
| Media Sensors | Movable reflective/black mark sensor; multi-position transmissive/gap sensor |
| Programming Languages | ZPL II, EPL 2, XML, ZBI, PDF Direct |
| Software Suite | Zebra Print DNA (includes PrintSecure for cybersecurity) |
Standard Features
|
Physical Characteristics
| Dimensions | ZD621 Direct Thermal: 8.7 in. L x 7.0 in. W x 5.9 in. H 221 mm L x 177 mm W x 151 mm H ZD621 Thermal Transfer: 10.5 in. L x 8.0 in. W x 7.5 in. H 267 mm L x 202 mm W x 192 mm H |
| Weight | ZD621 Direct Thermal: 3.6 lb./1.6 kg ZD621 Thermal Transfer: 5.5 lb./2.5 kg |
Printer Specifications
| Operating System | Link-OS |
| Resolution | 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) |
| Memory | 512 MB Flash; 256 MB SDRAM |
| Maximum Print Width | ZD621: 4.09 in./104 mm for 203 dpi 4.27 in./108 mm for 300 dpi |
| Maximum Print Speed |
8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi) |
| Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor |
| Programming Languages | ZPL II; EPL 2; XML; ZBI; PDF Direct |
Media and Ribbon Characteristics
| Label Length | Minimum: 0.25 in./6.35 mm Maximum: 39.0 in./991 mm |
| Media Width | ZD621 Direct Thermal: 0.585 in./15 mm to 4.25 in./108 mm ZD621 Thermal Transfer: 0.585 in./15 mm to 4.65 in./118 mm |
| Media Roll Size | Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in./12.7 mm and 1.0 in./25.4 mm standard, 1.5 in./38.1 mm, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters |
| Media Thickness | ZD621: 0.003 in./0.08 mm min.; 0.0075 in./0.19 mm max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands, and linerless* * For use only with linerless printer model |
| Ribbon Outside Diameter | ZD621: 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Ribbon Standard Length | ZD621: 984 ft./300 m; 243 ft./74m |
| Ribbon Ratio | 1:4 ribbon to media (300 m) 1:1 ribbon to media (74 m) |
| Ribbon Width | ZD621: 1.33 in./33.8 mm to 4.3 in./109.2 mm |
| Ribbon Core I.D. | 1 in./25.4 mm (300 m) 0.5 in./12.7 mm (74 m) |
Operating Characteristics
| Operating Temperature | 40° to 105° F/4.4° to 41 °C |
| Storage Temperature | -40° to 140° F/-40° to 60 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply |
Options and Accessories
| Healthcare | Our healthcare models include white color scheme, healthcare-compliant power supply, disinfectant-ready, easy-to-clean plastics, sealed button interface and UV-resistant housing |
| RFID | Available in RFID, supports UHF EPC Gen 2 V2.1 and RAIN RFID protocols, uses Adaptive Encoding Technology and Zebra’s RE40 RFID Reader/Encoder |
| Linerless | For use with Zebra ZeroLiner labels; direct thermal only; cutter or tear |
| Media Handling | Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable) Cutter (factory or field installable) |
| Communications | Factory installed: dual radio Wi-Fi 6 (802.11ax) and Bluetooth 5.3 (MIMO) Field installable: dual radio Wi-Fi 6 (802.11ax) and Bluetooth 5.3 (SISO) Factory installed or field installable: dual radio Wi-Fi 5 (802.11ac) and Bluetooth 4.2 Field installable Serial RS-232 auto-sensing (ZD611 only, standard on ZD621) |
| Battery | Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options |
| Carrying Case1 | Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application |
| Keyboard Display Unit | ZKDU keyboard display unit for stand-alone printing solution |
| Mounting Adapter Bracket | Enable printer to be mounted in same location as LP/TLP2824 Plus printer |
| Media Locking Cabinet | Mechanical lock with 2 keys; Kensington® lock slot; available on ZD621 healthcare direct thermal model only |
| Enclosed Power Supply | Attached power supply accessory for cord-free installation of the ZD621 only |
Fonts/Graphics/Symbologies
| Barcode Ratios |
2:1 and 3:1 |
| 1D Barcodes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Barcodes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM |
