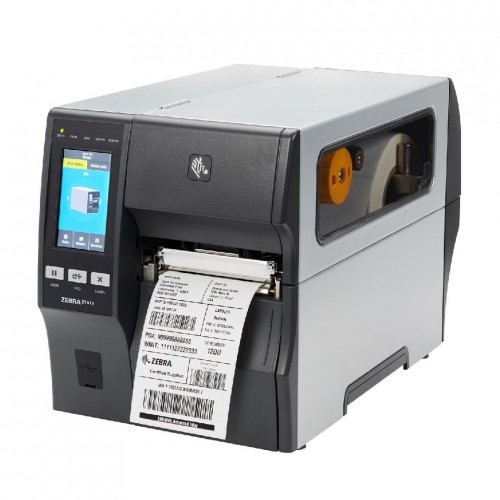

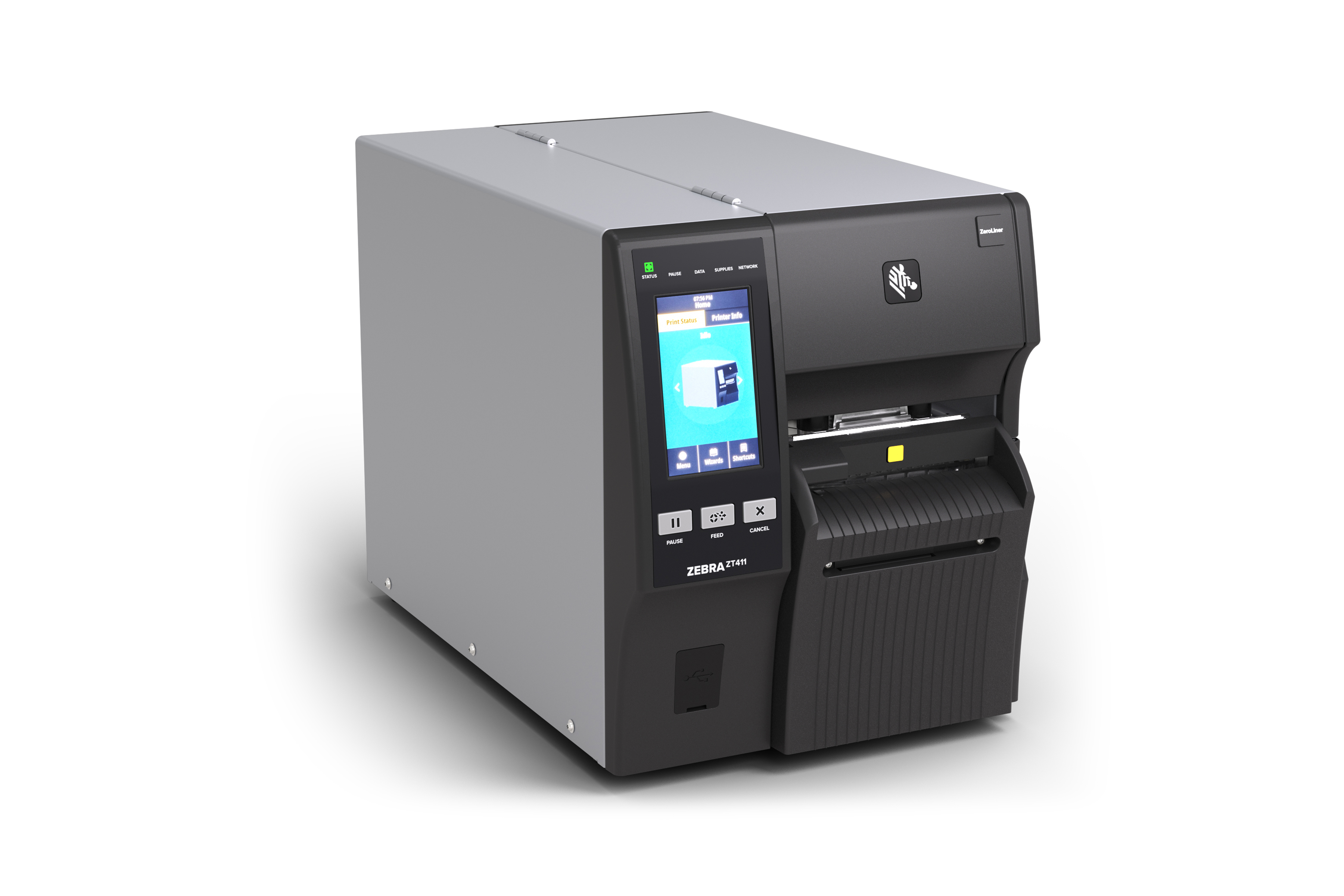

Product Model: ZT-411
Brand: Zebra
Category: Barcode Printer
The Zebra ZT411 300 dpi printer is an industrial-grade label printer built for high performance and reliability in demanding environments such as manufacturing, transportation, and logistics. The 300 dots per inch (dpi) resolution ensures crisp, clear printing of small text, detailed graphics, and high-density barcodes.
Key Features
| Country Of Technology | USA |
| Brand | ZT-411 |
| Printing Modes | Thermal and Dirtect Transfer |
| Resolution | 300 DPI (12 dots/mm) |
| Speed | 14 ips |
| Print Width | 4.25 in (108 mm) |
| Memory | Memory 256 MB SDRAM memory 512 MB on-board linear Flash memory |
| Communication |
USB 2.0, high-speed, RS-232 Serial, 10/100 |
| Warranty | 01 Years Limited Warranty |
Standard Features:
• Print Methods: Thermal transfer and direct thermal printing
• Construction: Metal frame and bi-fold metal media cover with
enlarged clear viewing window

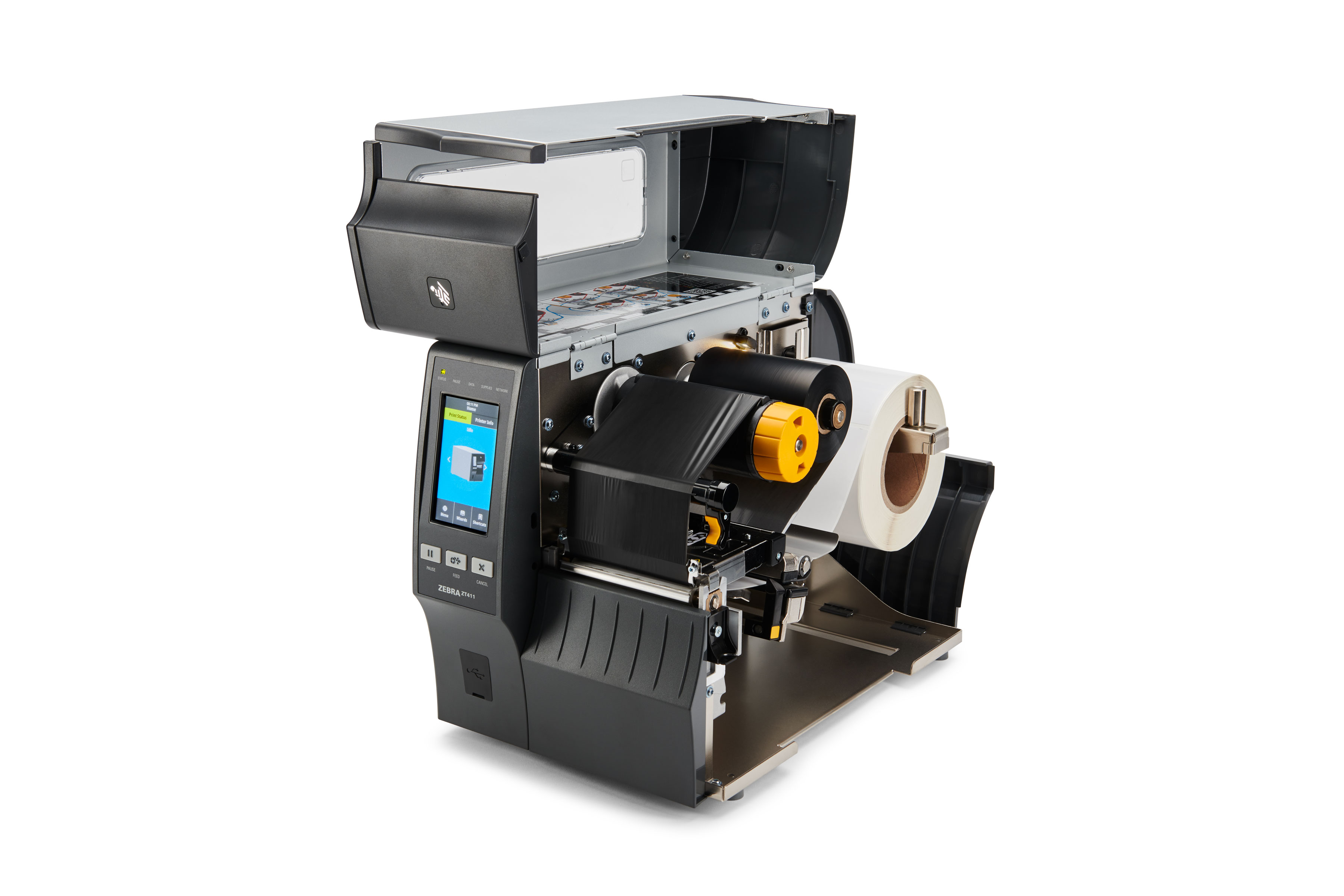

• Side-loading supplies path for simplified media and ribbon
loading
• Thin film printhead with E3™ Element Energy™ Equalizer for
superior print quality
• Communications: USB 2.0, high-speed, RS-232 Serial, 10/100
Ethernet, Bluetooth 4.2, Dual USB Host
• 4.3-in. color touch display with intuitive menu for quick
operation and settings management
• Bi-colored status LEDs for quick printer status
• ENERGY STAR qualified
Physical Characteristics:
Dimensions
(closed)
ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H
495 mm L x 269 mm W x 324 mm H
Note: Dimensions are for the base model
printer. Consult your sales representative for
specifics regarding other configurations.
Weight ZT411: 36 lbs./16.33 kg
Printer Specifications:
Resolution: 300 dpi/12 dots per mm
Memory: 256 MB SDRAM memory 512 MB on-board linear Flash memory
Maximum Print Width: 4.09 in./104 mm
Maximum Print Speed: 14 ips/356 mm per second
Media Sensors Adjustable dual media sensors: transmissive
and reflective
Print Length : 300 dpi: 73 in./1854 mm
Media Characteristics
Media Width :1.00 in./25.4 mm to 4.5 in./114 mm
Maximum Media Roll Size: 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. Core
Communication Two open communication slots to add
internal cards for:• Dual band 802.11ax Wi-Fi
and Bluetooth 5.3
• Dual band 802.11ac Wi-Fi and Bluetooth 4.2
• Parallel (bi-directional interface)
• 10/100 Ethernet
• Applicator interface
Media Handling Rewind: Internally rewinds a full roll of
printed labels on 3 in. core, or peels and
rewinds liner (factory installed only)
Peel: Front-mount, passive peel option
Peel: Liner take-up—additional full-roll liner
take-up spindle accommodates standard
printer base
Cutter: Front-mount guillotine cutter and
catch tray
1 in. I.D. Core media supply hanger (ZT411
only)
Ink-side in ribbon supply (ZT411 only)
Linerless* There are two options for linerless capability:•
Factory-installed linerless model (available as
Direct Thermal only)
• Field installable linerless upgrade kit
*Available on ZT411 only
RFID Supports tags compatible with: UHF EPC Gen
2 V2.1, ISO/IEC 18000-63 and RAIN RFID
protocols
Integrated RFID system is user-upgradable in
the field and available on both 4 in. and 6 in.
models
Adaptive Encoding Technology automatically
selects optimum encode settings
Field installable on-metal RFID kit available*
*ZT411 only (not available on the 600 dpi
model)
Keyboard
Display Unit
ZKDU™ keyboard display units for
stand-alone printing applications
Automation Field-installable kit for the ZT411 for use with
automatic labeling system. Includes:•
Extended peel mechanism
• Captured media spindle
• Applicator interface card
